Solid-Liquid Separation System "LCSS" Standard Specifications
|
Model |
M300 | M450 | M600 | M750 | |
| Capacity (M3/Hr) | 0.5~3 | 1~10 | 5~25 | 8~40 | |
|
Power (Kw) |
Main Electric Motor | 18.5~30 | 37~55 | 75~110 | 110~160 |
|
Electric Motor for varying the velocity |
18.5~30 | 37~55 | 75~110 | 110~160 | |
| Approximate Maximum Centrifugal Gravity (G) | 3000 | 3000 | 2500 | 2000 | |
| Approximate weight (Ton) | 2.3 | 3.3 | 6.5 | 9.0 | |
|

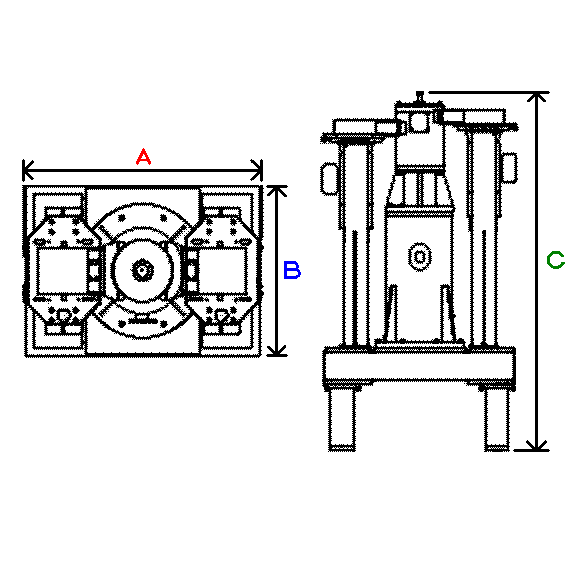

Approximate |
A | 1400 | 1600 | 2200 | 2300 |
| B | 1000 | 1200 | 1600 | 1800 | |
| C | 2700 | 3000 | 3700 | 3900 | |
